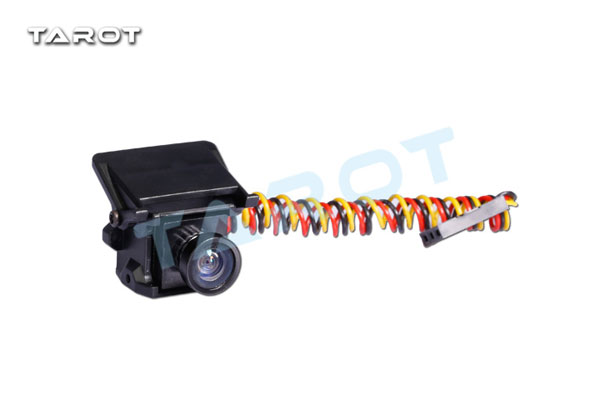

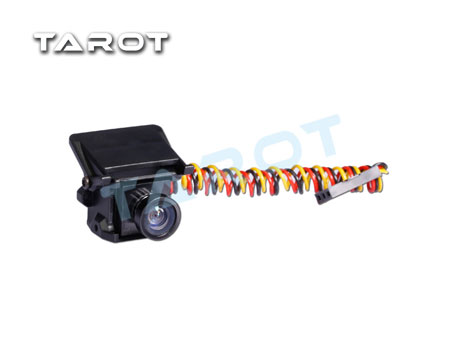

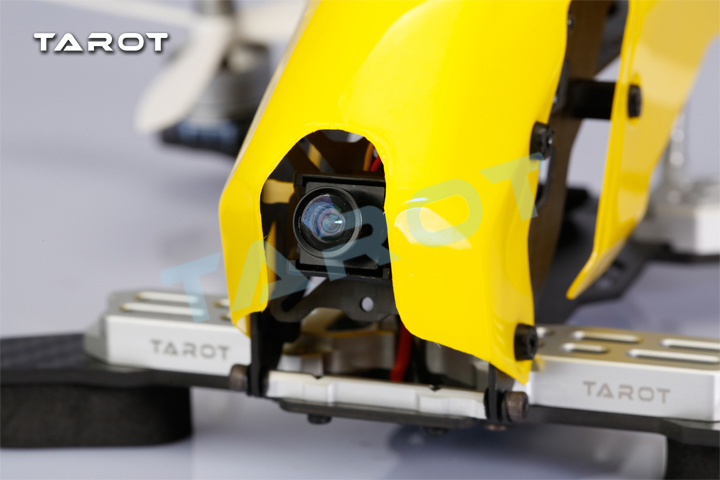

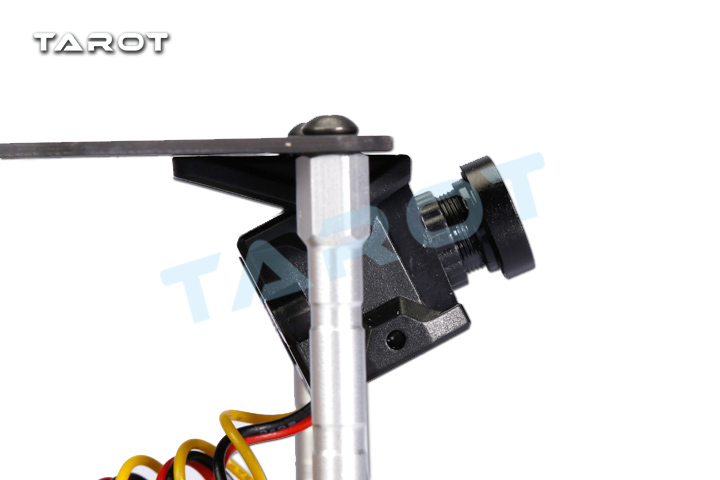

TAROT custom Mini 520TVL mini light color high-definition camera (FPV aerial camera) the level of 120 degree high definition wide-angle lens, applicable in the field of mini200/250/300 small through the machine, FPV model aircraft aerial, monitoring. Product volume is small, light weight about 5g, built-in buck module, no need to buck, can be directly connected to the 2S-3SV lithium polymer battery (5V-12V) power supply use.
- Connecting line description:
- Red line: DC (5V-12V) power input
- Black line: the power of the negative and the video ground
- Yellow line: AV video signal output
- Related product number:
- 5V-12V aerial camera NTSC system TL300MN
- 5V-12V aerial camera PAL system TL300M
- FPV 5-12V Compact Ultra Light HD camera PAL Mini standard TL300M1
- FPV 5-12V Compact Ultra Light HD camera NTSC Mini standard TL300M2
- Product parameters:
- Clarity: Lines 520TV (hd)
- Active pixel: NTSC=720 (H) x 487 (V)
- Video format: NTSC/PAL
- Photosensitive chip: inch HD Color CMOS 1/4
- Video output: 1.0Vp-p/75
- Lowest illumination 0.008Lux (ultra low illumination)
- Power consumption: 40MA 10%
- Working voltage: DC5-15V 10%
- Synchronization system: internal synchronization
- Signal to noise ratio: greater than 50dB
- Electronic shutter (N) 1/60-1/10000s, (P) 1/50-1/10000s
- Working temperature: 0 ~45
- Product specifications:
- 520TVL small HD color camera x 1 (15 x 20 x 22mm + 1mm) 5g
