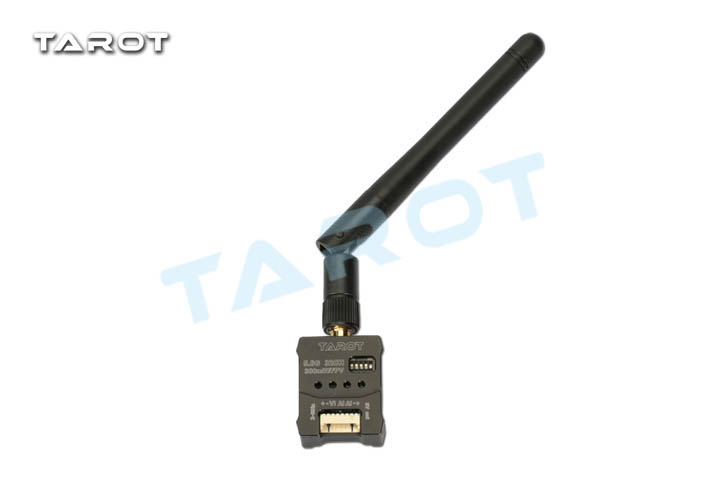

Tarot FPV 5.8G 32CH 300mW Audio Video A/V Transmitter TX

• Description:
• Brand: Tarot
• Weight: 11g (without antenna)
• Dimension: 23.5×363×12.5MM
• Working Frequency: 5645-5945MHz
• Channel: 4 bands / 32 channel
• Channel selection: 5-DIP switch
• Output Power: 27.5 dbm (300mw)
• Input Voltage: DC 7-26V (2-6S)
• Output Voltage: 5V 1A
• Antenna Adaptor: RP-SMA 50Ω
• Working Temperature: -10 ~ 60 degrees
• FM Frequency: FM

Note:

• Install the antenna before connecting the power to avoid further damage.
• Choose proper working frequency and tune the receiver to the same frequency. Please refer to the channel list.
• Do not touch the surface of transmitter while operating. It is normal the surface is getting hot.
• The input voltage range is between 7-26V (2-6S), do not overload the working voltage.
• The output voltage is 5V1A. Please confirm the current and voltage of the camera

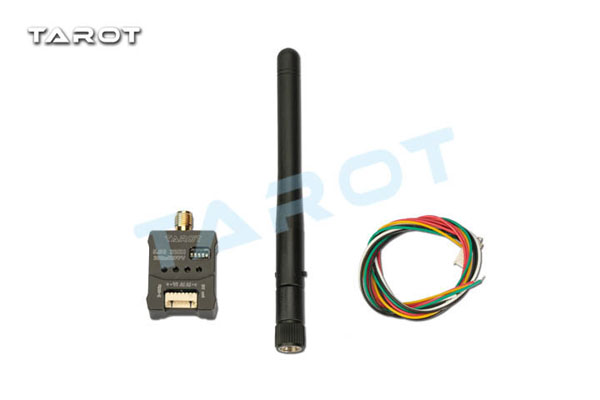

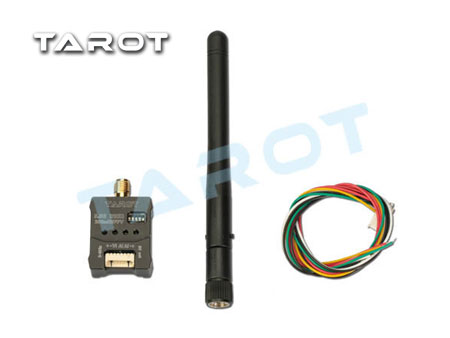

• Tarot 5.8G FPV audio and video transmitter x 1
• 7P color strip line x 1
• 5.8g transmitting antenna x 1
• Manual x 1
