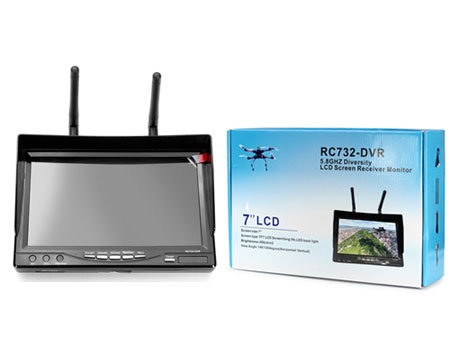

RC732-DVR 7inch 5.8GHz Diversity LCD Screen Receiver Monitor

Price Unavailable
  • Model: PM-RC732-DVR
  • Shipping Weight: 1035 grams
  • Manufactured by: PM



  • Built-in diversity wireless receiver
  • Built-in wireless receive output
  • Could receive 2CH RF signal at the same time
  • Use 5.8GHz ISM frequency band
  • Could display 5.8G wireless receive signal and external input signal

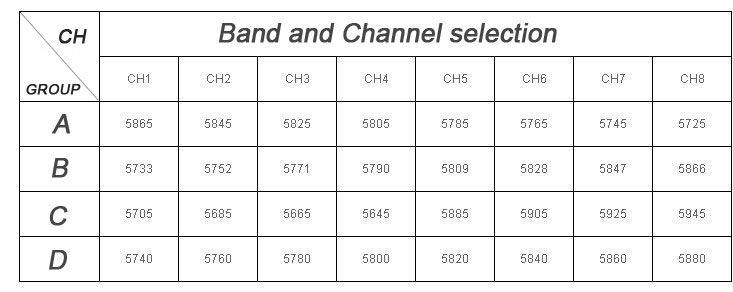

  • 4 Frequency set, 32 channels
  • Built-in lipo battery for outdoor use
  • Screen type: TFT LCD Screen/long life, LED backlight
  • Resolution: 800 x 480
  • Wireless receive: 5.8GHz 32CH, -90DBM sensitivity
  • Antenna Interface: SMA (inner needle)
  • Language: 5 English,simplified Chinese,traditional Chinese,Devin,French)
  • Built-in 3ch output, 1ch external AV input
  • OSD Display: RF signal strength, Battery capacity, RF work channel
  • Work status OSD display: Always be aware of the device working condition


  • Built-in 5.8Ghz dual diversity receiver automatically for the best receiption
  • Built-in 2Ch 5.8Ghz AV output and I CH AV input
  • Built-in high performance 7.4V 2800mAh Li-Po
  • Work Status OSD display: RSSI indication; Battery indicator; Channel indicaton
  • A key to automatic signal search
  • Storage: Max.support 32GB SD TF Card
  • Size: 180mm X 120mm X 50mm (Note: Sunshield height: 28m)
  • Working Voltage: DC7-28V
  • Power Consumption: max 650mA@12V
  • Battery Charging Current: 850mA@12V (Max)
  • Working Temperature: 10C ~ 65C

    Display Parameter:

  • Screen Size: 7"
  • Screen Type: TFT LCD Screen/ Long life, LED backlight
  • Resolution: 800 X 480
  • Brightness: 450cd/m2
  • View Angle: 140/120 degree(H/V)





  • RC732-DVR Monitor
  • Antenna X 2
  • AV Cable
  • USB cable
  • Charger
  • Cleaning cloth

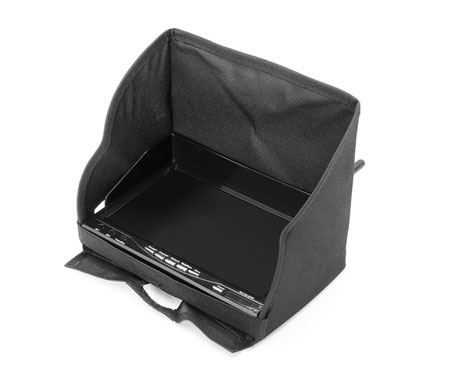

  • Sun Hood Shade
  • English Manual


This product was added to our catalog on Thursday 17 September, 2015.
