| Hermit Mircro Brushless Quadcopter FPV BNF Kit |
 |

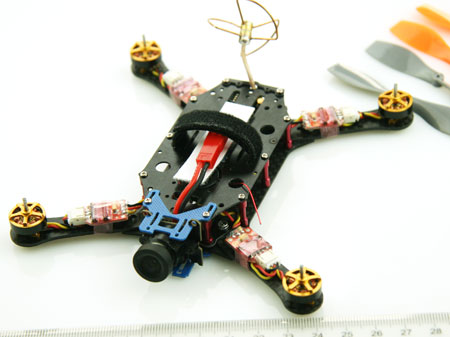

Hermit 145 is a newly designed micro FPV quad copter, only 140mm motor to motor size can it fly in the narrower and confined space easily. Although it is very small, it can install a 5.8G video transmitter(VTX), a DV of 120-angle lens, a flight control board integrated with receiver, GPS (option), OSD (option) and so on. Besides, you can adjust the distance of motor to motor through the frame, and the view angle of DV is adjustable too.
| Body Weight: |
67g (not including battery) |
| Flight Weight: |
98g(450mAh 25C7.4V) |
| Flight time:: |
9 minutes ( with 2S 450mAh 25C battery, VTX and DV on working) |
| Motor to motor distance: |
145mm, 150mm, 155mm adjustable;y |
| View angle of DV: |
+/- 25 angle adjustable) |
| Motor KV: |
4000 |
| Motor Weight: |
3g
|
| micro 5.8G VTX : |
(200MW) comes with clover antenna, only 6.0 gram |
| Applied super light DV: |
720P/30F and with 120-angle lens |
This product comes in fully assembled:
Binding operation:
1) Press the binding switch on the receiver (green LED is on),then power FC board, release the binding switch, the green LED on the receiver flashes quickly (the receiver enters binding mode);
2) Press the binding switch on the DSM2 transmitter and then turn on the power;
3) When the fast flashing LED on the receiver is off and then comes to bright constantly, it indicates the binding is succeed, or repeat the above process.
Unlock operation:
Throttle to THR, Elevator to PITCH, Aileron to ROLL, Rudder to YAW
Unlocking: pull the throttle to the lowest, turn YAW to the right end (if it is still unlocking, please set range of YAW and THR to 120%, and check the channel direction and then try)
- Hermit 145 frame Kit
- MP03 brushless motor : 4 pcs .
- Mu-3A ESC: 4 pcs
- 2 sets of propeller (8 props)
- One piece of MX-VTX-B with clover antenna
- One set of MINI DV（720P/30F，120-angle lens）
- One piece of MX OVERSKY 32 flight control board (integrated with DSM2 7CH receiver, supports firmware of BaseFlight and CleanFlight)
- 1 pcs of 450mAh25C7.4V battery
| |
The following are reference for configured parameter , especially PID parameter is for reference:
How to judge the rotation of the motor from the cable color:
How to calibrate ESC:
1) Connect the assembled Hermit 145 to Cleanflight GUI through USB, click connect (Attn: please don’t connect the battery);
2) Click from Motors option, and pull up Master to highest (full).You can see that all the motor outputs are 1850
And at the same time, one “beep” from motor will be heard again, then disconnect the battery on Hermit 145, then disconnect the connection with Cleanflight GUI, and pull off USB cable, the calibration for ESC is finished!
