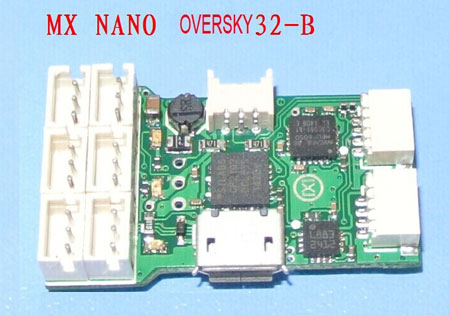

MX NANO OVERSKY 32 type B flight control board comes with DSM2 compatible 7CH receiver, sensor on it is MPU6050
MX NANO OVERSKY 32 is designed on the basis of the original NAZE 32, MX NANO OVERSKY 32 supports both Baseflight firmware and Cleanflight firmware, for using on different models, MX NANO OVERSKY 32 gets different types.
1) Super small size (not including its case): 32.0*19.6*10.5mm (Type A); 32.0*19.6*7.2mm(Type B)
2) Very light (not including its case and the integrated receiver): 3.2g (Type A), 2.9g (Type B);
3) Working voltage: Type A and B:5~10V; Type X: 3.3~4.5V or 5~10V;
4) 12M/10PPM Crystal Oscillator;
5) Receivers it supports: PPM，DSM2，DSMX，SBUS；
6) Option for integrated with DSM2 compatible 7CH receiver;
7) Type X is with DCDC boost (output 5V/500mA),it can supply power for outside device;
8) The integrated output 5V/500mA LDO can supply power for outside device;
9) Independent ports for IIC, GPS, PPM/DSM/SBUS receivers;
Notes: Type A gets 2.54mm pitch port, Type B and Type X is with 1.5mm pitch port.
Size for MX NANO OVERSKY 32 flight control board (unit: mm):
