Tarot TL200A Mini 200mm 4-Axis Quadcopter Frame Kit Super Combo	Login for price
Price Unavailable

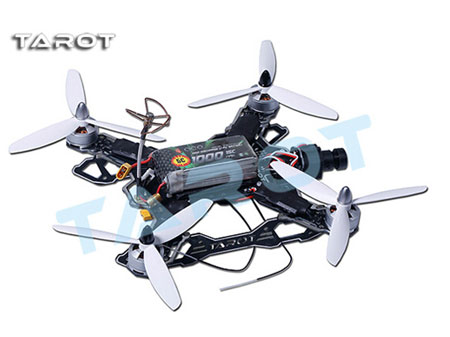

Tarot TL200A Mini 200mm 4-Axis Quadcopter Frame Kit Super Combo

larger image

Model: FYTL200B
Shipping Weight: 368 grams
Manufactured by: Tarot

Super lightweight,allows the camera,battery,ESC, image transmission and antenna to be plugged directly on the frame or soldered on the PCB board,much less wiring,easy to install.
Using recommended 15c/11.1v1000mah battery,can enjoy 9 min flight.
Compatible with 2.4G/5.8G transmitter,enjoy the fun of DIY.
Equipped with Tarot series camera,antenna,motor,ESC, image transmission, propeller and flight controller,you can assemble your own characteristic quadcopter.

Wheelbase: 200mm
Empty Rack Height / Assembly height: 43mm / 85.8mm
Empty Frame Length / Assembly Length: 168mm / 185mm

Empty Frame Width / Assembly width: 168mm / 168mm

Tarot TL300M Camera	Lens	2.8mm
	Camera Angle	120°
	Definition	600TV Lines (HD)
	Effective pixels	PAL = 720 (H) × 576 (V) / NTSC = 720 (H) × 487 (V)
	Video system	NTSC / PAL
	Sensitive chip	1/3 inch HD Color CMOS
	Video Output	1.0Vp-p / 75Ω
	Minimum illumination	0.008Lux (ultra low-light)
	Power consumption	40MA ± 10%
	Operating voltage	DC5-15V ± 10%
	Synchronization System	Internal Synchronization
	SNR	>50dB
	An electronic shutter	(N) 1 / 60-1 / 10000s, (P) 1 / 50-1 / 10000s
	Working temperature	0 degree ~ 45 degree
	Weight	15g
	Size	212630 ± 3mm
Tarot TL300N Image Receiver	Weight	10.9 G (without antenna)
	Dimension	28 x 46 x 40 mm
	Working frequency	5645-5945 MHZ
	Channel	4 bands / 32 channels
	Channel selection	5-DIP switch
	Receiving Sensitivity	-85 dbm
	Input Voltage	DC 7-26V (2-6S)
	Antenna Adaptor	RP SMA 50Ω
	Working Temperature	-10 ~ 60 degrees
	Frequency	FM/PLL
	Output	2.5mm 4 pins AV output
	Power input	3.5mm (exterior) 1.3 mm (interior) DC
Tarot TL300N Transmitter module	Weight	8.3G (without antenna)
	Dimension	21 x 33 x 7.5 mm
	Working Frequency	5645-5945MHz
	Channel	4 bands / 32 channel
	Channel selection	5-DIP switch
	Output Power	27.5 dbm (600mw)
	Input Voltage	DC 7-26V (2-6S)
	Output Voltage	5V 1A
	Antenna Adaptor	RP SMA 50Ω
	Working Temperature	-10 ~ 60 degrees
	Frequency	FM
Tarot TL300K Antenna	Transmission frequency	5800MHZ
	Gain	2.0dBi-2.5dBi
	Note Bobby	<1.5
	Directivity	Omnidirectional
	Horizontal beam width	45 °
	Vertical beam width	45 °
	Impedance	50Ω
	Antenna adapter	RP-SMA Male
	Polarization	circular polarization
Tarot TL300H Motor	Power Supply	2-3S
	Prop Diameter	5mm
	Max Thrust	460g
	Interphase Resistance	≤4mΩ
	Stator Diameter	18mm
	No-load Current	0.4A-0.7A
	Stator End Thickness	6.0
	Stator End Quantity	12
	Motor Pole Number	14
	Rotate Speed	2280KV ± 5%
	Motor Outer Diameter	23mm
	Axis Diameter	2mm
	Motor Length	26.5mm
	Motor Weight	18g
Tarot TL300E Propeller	Spec.	5 inch 3-leaf
Tarot TL300G ESC	Spec.	12A(with BEC)
Tarot TL300D Flight controller	Spec.	CC3D Openpilot

TL200A Kit x 1
TL300M camera x 1
TL300N FPV Transmitter Combo x 1
TL300D CC3D x 1
TL300K 5.8g Antenna x 1
TL300E 5 inch 3-leaf propeller x 1
TL300G 12A ESC x 4
TL300H 1860-2280KV brushless motor x 4
English manual x 1
