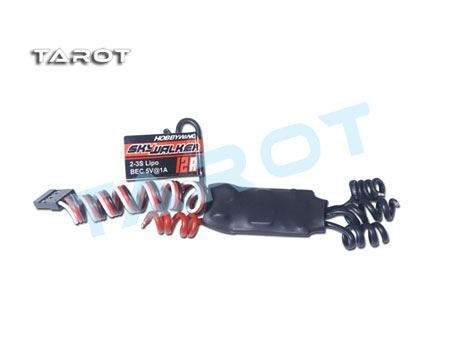

SkyWalker (Skywalker) Series Brushless ESC parity empty mold for good profit company original authentic, universal and applicable to RTF brushless power system applications.
The range of products and good profit other products, all made of high quality genuine devices, under strict quality control of production, product feature-rich, cost is excellent.
1: safe power function: power, regardless of the position of the throttle stick in any motor will not start immediately, to prevent injury;
2: Throttle range calibrated features: remote control to adapt to the difference between different throttle range, improving throttle response linearity;
3: programmed project (available throttle stick or LED parameter settings tab settings):
- Brake setting: no brake / with brake;
- Battery type: Lithium Battery / NiMH;
- Low Voltage Protection Mode: Soft Shutdown / hard shutdown;
- Low Voltage Protection Threshold: low / medium / high;
- Start mode: Normal / Soft / Super-soft and starting;
- Timing: low / medium / high;
- Restore factory defaults;
Comprehensive protection features:
- voltage protection: programmed by the user when the battery voltage is lower than the protection threshold, ESC automatically reduces the output power;
- Overvoltage protection: the input voltage exceeds the input range allows not start, automatic protection, also issued a hasty "beep" warning tone;
- overheat protection: Built-in temperature detection circuit automatically reduces the output power when the ESC temperature is too high;
- remote control signal loss protection: remote control signal to reduce the power loss of 1 second, 2 seconds then there is no remote control signal disables the output;
- Output capacity: Continuous current 12A, short-time current 15A (less than 10 seconds)
- Power input: 2 lithium batteries or 5-6 NiMH / NiCd battery pack
- BEC Output: 5V @ 1A (linear regulator mode -linear mode)
- throttle signal frequency range (Refresh rate): 50Hz-432Hz
- Maximum speed: 2-pole motor 210,000 rev / min, 6-pole motor 70000 rev / min, 12 pole motor 35000 rev / min
- Programmable Item: Timing （High/Intermediate)
- Dimensions: 38mm (length) * 18mm (width) * 6mm (high)
- Weight: 9g
