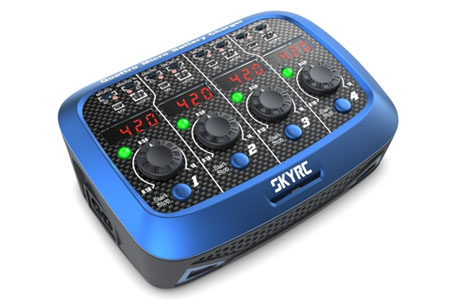

SKYRC Quattro Micro Battery Charger employs the circuit that features four totally independent power outputs which are powered 4W each. It is designed for charging single cell LiPo. Inset the battery lead to the right connector in each port, the charger will charge 4 batteries at the same time. And the charging current can be adjusted from 0.1A-1A by dial, the charging capacity and cell voltage can be displayed in each 4-digital LED Indicators
Feature:
- Four independent ports can be used at the same time
- Four different kinds of the battery connectors in each port
- Four independent functioning charging circuits
- Four independent 4-digital LED display current and capacity
- LED and audible sound indicate charging status
- Adjustable charging current from 0.1-1A
- AC/DC Dual power input
- Efficient ventilation
- Maximum protection: short circuit protection; over current protection;
battery reserve polarity protection and DC input voltage protection
Specification:
- Net Weight: 280g
- AC Input Voltage: 110-240V
- DC Input Voltage: 11-15V
- Circuit Power:4X4W±10%
- Charge Current Range: 0.1-1.0A±10%
- Battery Type: 4X1 cell LiPo
- Battery connector type: 4 x 1 cell LiPo
- Working temperature: 0-50℃
- Length: 132mm
- Width: 100mm
- Height: 50mm
Include:
- SKYRC Quattro Micro Battery Charger (1 pc)
- Power Cord (1 pc)
- English Manuel Instruction
