This product is specially made for those customers who only have NTSC cameras
Supports SONY NEX5N,5R,7N NIKON D90
Stereo output, supports right and left sound tracks
Use Standard ∮3.5 RCA Audio and Video cables
FPV Sony NEX Mini HDMI to AV Converter Card Set w/HDMI Cable & AV Cable PAL/NTSC
- Common type HDMI to AV card, compatible with HDMI output camera
- Setting camera HDMI resolution to Auto
- PAL/NTSC format
- 720*576 resolution PAL
Attn:
Customer needs to set HDMI resolution to AUTO on camera, this device may not support those cameras that don’t have the function of AUTO HDMI Resolution, as soon as Auto HDMI Resolution is set up, you must turn off the camera and restart it, the set up will take effect finally.
PAL and NTSC will do nothing with the converter, only resolution ratio will influence its output.
User can do DIY with old earphone cables. For those customers who don’t need the audio track(channel), it would be ok for only bringing out GND and VIDEO.
VIDEO output resolution: 720*576 PAL
The cable length for HDMI port to MINI is 150mm, its width is 9.5mm, it is covered with signal resistance paint-coat.
Attention before using HDMI to AV converter (must follow the following steps! It fits SONY converter and Converter for General use)
- Most importantly, don’t connect the converter or any cable to the camera before the process. Set up HDMI resolution to AUTO, saved, then quit the set up menu, and turn off the camera.
- Connect the HDMI converter or the related cable, turn on the camera, it will work normally.
- If no image is appeared, please check and see if the resolution set up is on “AUTO” state, that is to say, we need to check whether the step one is completed and saved or not, and then start working. If it still does not working, please repeat the step 1).
- For those very special and few versions of cameras, according to our experience, those SONY cameras sold in France, needs to set up PAL, the reason may be related with its firmware.
The several possibilities for problem of no image:
- Many customers normally would like to connect the converter with the camera first and then set up AUTO resolution, it is a mistake, because the set up will not be succeed in this way on most cameras. You must disconnect the HDMI converter and related cables and then do the set up, saved, and then turn off the camera.
- There is signal output, but the screen is rolling and turning, the reason is that the output of our converter card is PAL signal, the monitor the customer are using needs be able to support PAL signal too.

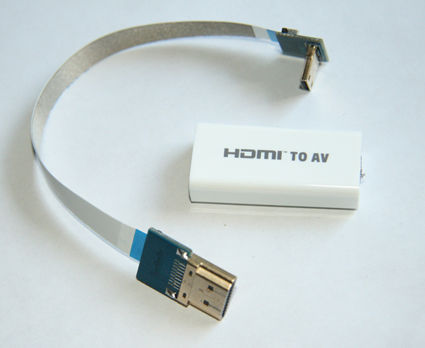

Set Included:
- 1 x HDMI to AV card
- 1 x Super soft HDMI to Mini HDMI Cable
