The H3-3D gimbal is powered by the same advanced algorithms, high precision sensors and brushless motor designs used in professional Zenmuse gimbals, making it astoundingly stable.
An independent high-precision Inertial Measurement Unit (IMU) offers precise attitude information and more accurate control.Functionalities can be easily expanded through firmware upgrades
Use for:
Phantom 2 new
Phantom 2 old (requires mounting adapter H3-3D Part #10)
Phantom 1
Flame wheel
Supported Camera: GoPro3, GoPro3+ Black and Silver
- Assistant Software System Requirement: Windows XP SP3; Windows 7; Windows 8
- GCU Input Power:
3S~6S LiPo (12V~26V)Static current: 400mA (@12V)
Dynamic current: 600mA (@12V)
- Gimbal Input Power: 3S~6S (12V ~ 26V)
- Operating Temperature: -10°C ~ 50°C
- Gimbal Weight: 168g (camera excluded)
- Gimbal Dimensions (With Damping Unit): 97mm X 95mm X 73mm
- GCU Weight: 22g
- GCU Dimensions: 42 mm X 32 mm X 9.3 mm

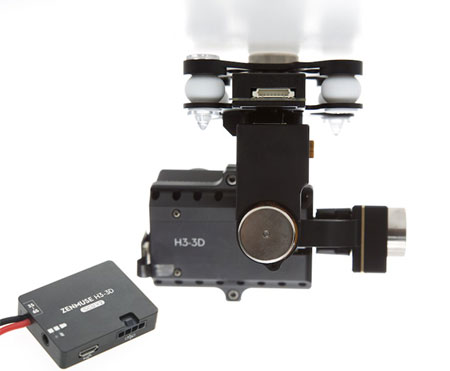

- DJI Zenmuse H3-3D 3-Axis Gimbal x 1
- Damping Unit x 1
- Gimbal Controller Unit (GCU) x 1
- Cables & Accessories
| |
