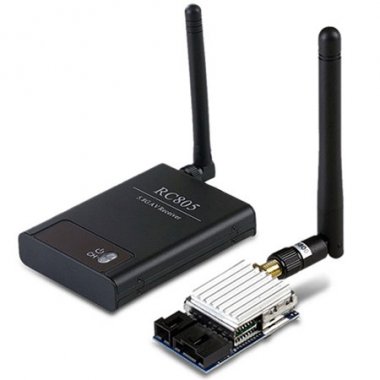

The RC805 5.8 GHz of AV receivers come with one press channel selection buttons and LED digital channel display, no need to use the jumper settings. The receiver is also designed additional AV output for video recording while using FPV goggles
200mw 5.8 GHz transmitter features a lightweight and built-in microphone function, if you are using 5.8GHz circularly polarized antenna, transmission range can be extended to ≧2 km.
RC805
- Receiving frequency: 5645-5945MHz; 8ch
- Receiving sensitivity: ≤-90dBm
- Frequency control: Built-in PLL
- Analog AV signal output: AV 1, AV 2 Antenna connector: SMA
- Power supply voltage: DC5-12V
- Supply current: 150mA
- Dimension: 75*54*15mm Gross weight: 130g
TX851
- Transmitter frequency: 5645-5945MHz; 8ch
- Frequency control: built-in frequency and phase lock loop
- ANT connector:SMA(inside the needle)
- AV input:analog AV signal input
- Current supply:300mA
- Power supply: DC 6.5 - 12V
- Video: PAL/NTSC
- Dimension: 55mm x 26mm x 17mm
- Built-in microphone audio pick up device
- Built-in high-frequency PLL stability
- 8 Channel selectable
- Low harmonic radiation
- Direct input analog audio and video signals
- RC805 X 1
- TS351 X 1
- Stereo jack to RCA AV output cable x 1
- Power in harness x 1
- Power out Video out Audio out harness x 1
- JST Power cable x 1
- 2dBi stock dipole antenna x 2
- User Manual
| |
