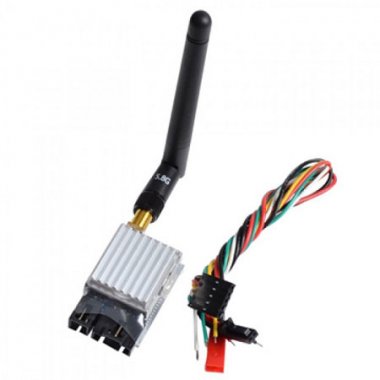

400mw 5.8 GHz transmitter features a lightweight and built-in microphone function, if you are using 5.8GHz circularly polarized antenna, transmission range can be extended to ≧3.5 km.
- Transmitter frequency: 5645-5945MHz; 8ch
- Frequency control: built-in frequency and phase lock loop
- ANT connector:SMA(inside the needle)
- AV input:analog AV signal input
- Current supply:300mA
- Power supply: DC 6.5 - 12V
- Video: PAL/NTSC
- Dimension: 55mm x 26mm x 17mm
- Built-in microphone audio pick up device
- Built-in high-frequency PLL stability
- 8 Channel selectable
- Low harmonic radiation
- Direct input analog audio and video signals
- TS352 X 1
- Stock dipole whip Antenna x 1
- Power in harness x 1
- Power out Video out Audio out harness x 1
- User Manual
| |
