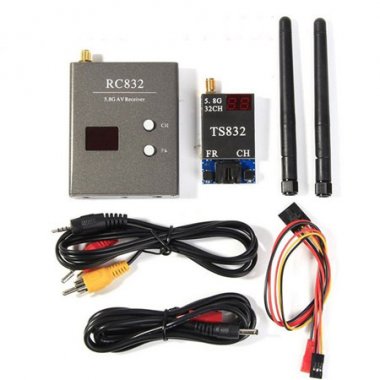

FPV 5.8G 600mW A/V Transmitting/Receiving System TS832 + RC832 - 32CH Edition
RP-SMA video format supported: NTSC/PAL
Antenna connection: RP-SMA, jack (module side, both TX and RX)
- 32 channels: Cover A, B, E bands and F bands
- Two switching buttons for the band and channel
- Two digits display for?the band and channel
- Power off memory for last channel and band
- Dual Independent video and audio signal outputs
TX832
- Power input: 7.4-16V (3S Lipo / ~12v suggested)
- Outputs 12v (matches input voltage)
- Transmitting power: 600mA
- Antenna gain: 2dB
- Working current: 220mA at 12V
- Video format: NTSC/PAL
- Video bandwidth: 8M
- Audio bandwidth : 6.5M
- Dimension: 54x 32x 10mm (excluding antenna)
- Weight: 22g
- Antenna connection: SMA (not RP-SMA)
RX832
- Power input: 12V
- Working current: 200mA max
- Antenna gain: 2dB
- Video impedance: 75
- Video format: NTSC/PAL
- Dimension: 80x 65x 15mm (excluding antenna)
- Weight: 85g
- TX832 X 1
- RX832 X 1
- Antenna (2db) x 2
- Power Cable for TX832 x 1
- Power Cable for RX832 x 1
- User Manual
| |
