Ultrasonic sensor module

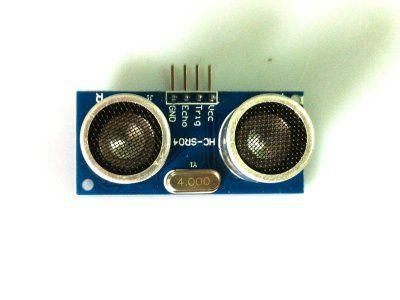

YTK-A6 serial ultrasonic ranging module is a high performance, cost-effective non-contact distance sensor module, measuring range of 0.02 ~ 4.00m, accuracy 1cm, measurement without direct contact with the measured object, can clearly show a steady measurement results

• Small, easy to use

• low voltage, low power consumption

• Wide measurement range

• high accuracy

• with temperature compensationApplication

Application:

• Applications ranging occasions;

• measuring the distance between objects:

• Programmable car obstacle avoidance:

• robot obstacle avoidance:

• teaching apparatus;

• security, industrial control

Instructions for use:

• This module will occupy in the use of a microcontroller IO port, connect the power, the modules within the distance once every 50ms, and from the pin OUT one, with four 8-bit data frame format is: 0XFF + H_DATA + L_DATA + SUM
  1. 0XFF: as a starting data for judgments.
  2. H_DATA: from the high 8-bit data.
  3. L_DATA: from the lower 8 bits of data.
  4. SUM: data and, for efficacy. The 0XFF + H_DATA + L_DATA = SUM (lower 8-bit only)
  Note: H_DATA and L_DATA synthetic 16-bit data, ie the distance in millimeters values.


• Operating voltage DC 5V

• Operating current Less than 10mA

• frequency 40KHz

• Max distance 4m

• Min distance 2cm

• Output pin 2．out

• Communication format 9600,n,8,1

• Response time 100MS

• accurcy 1cm

• drectivity Less than 30

• Operating Temperature -10-60℃

• Storage Temperature -20-80℃

• size 45*20*15mm
