| Super-X Mircro Brushless Quadcopter Kit |
 |

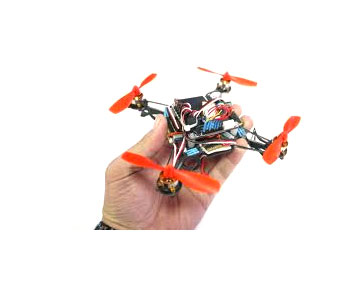

Super-X is one of the lightest and smallest brushless quadcopter on the market. It is installed MX NANO MWC 1.31 full functional flight control board (integrated with DSM2 receiver), it comes with 4 set of brushless power system providing double thrust of its own weight, so it is easy for 3D flying or installing FPV system etc. Its size is so small that it can hover easily indoor.
| Body Weight: |
38.2g (not including battery) |
| Propeller diameter: |
75mm |
| Brushless motor: |
MR-03-H (3g, 6400KV) |

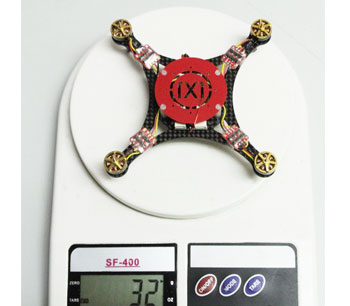

| Weight: |
38.2g (not including battery), 49.5g (including one 400mAh3.7V battery)
|
| Recommended Motor: |
22 × 12mm (Stator size) |

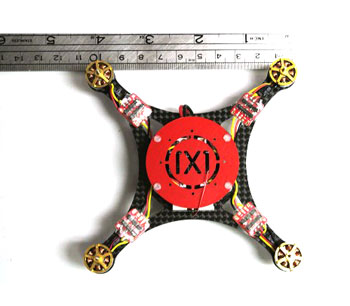

| Distance of wheelbase: |
125mm |
| Speed control: |
MX-3A (0.36g, 3a)
|
| Flight control board: |
NANO MWC 1.31 (integrated with DSM2 receiver) |
| 1s 300mAH/25C lip Flight time: |
8 minutes |
| 1s 400mAH/25C lip Flight time: |
10 minutes |
| 1s 600mAH/25C lip Flight time: |
12 minutes |
MX NANO MWC 1.31 Features:
It is integrated with DSM2 compatible 7CH receiver.
ATMEGA328P processor (16M/5V)
Onboard MPU6050, HMC5883L, BMP180 sensor.
Supports IIC-GPS, OLED.
Supports bluetooth module.
6 ESC output ports with 1.25mm 3P connector (it can power the ESC directly)
Onboard DCDC voltage boost circuit (5V/500mA output, it is for 1S lipo)
Onboard linear voltage step-down circuit (5V/500mA, it is for 2S lipo)
Note: Please check detail information of MX NANO MWC 1.31 through its manual.
*** Requirements for flight:
Supports 4CH or above transmitter or module of DSM2 agreement;
Support 1S lipo charger;
FDTI flash stick tool (for editing and changing parameter or flashing software, it is for option)
Binding operation:
1, Press the binding switch on the receiver and then power MX NANO MWC 1.31 flight control board, then release the binding switch, the LED light blinks quickly (The receiver enters binding mode)
2, Press the binding switch on DSM2 transmitter and turn on the power.
3, When the LED light changes from quick flashing to on, it indicates the binding is success, or you may repeat the above steps.
Install Instruction
- Super-X frame Kit
- Super-X- Main Control Board with DSM2 receiver.
- MR-03-H brushless motor 4 pcs
- MX-3A brushless ESC 4 pcs
- 75mm Propeller 8 pcs(2 sets)
- 1S 300mAh 25c Li-Po
- Battery Strap
| |
Attention:
Be careful of not reversed the positive and negative pole of the battery.
Please check and make sure the cables connected correctly before the first flight and make sure the rotating direction of the motors is correct.
Note: The flying time was tested indoor and the flight weight was 38.2g (not including the battery weight). The actual flying time will be different according to the change of environment and load.
