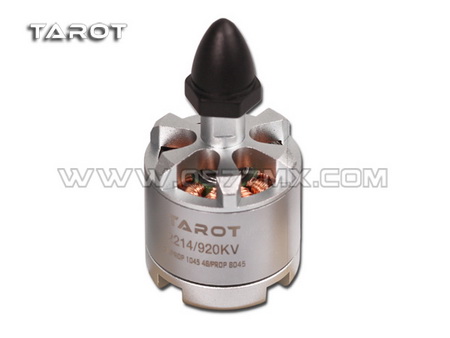

Features:Applicable 2KG axis , six-axis aircraft , such as multi-axis , 920KV multiaxial efficient brushless motor designed for multi- rotor design,
High-speed bearings ensure smooth motor. Products shipped before the whole system have been detected with high accuracy balancing test , in order to maintain
Stability when operating permit motor. The stator imported 0.20mm ultra-thin high-efficiency silicon steel and high temperature strength magnet, a thin
Type silicon steel motor with low heat to make more efficient features. The output shaft of the screw shaft with high rigidity , the use of screw
Grain axis , can be installed directly paddle clips ( propeller shaft native folder structure ) , it can get the best concentricity guaranteed . Motor superstructure with
Significant brand features top design high efficiency initiative scattered pad , a lower operating temperature means higher efficiency.
Note: The silver cap is threaded along , using carbon fiber paddle red top 9443 TL2866
Specifications: Motor frame : 12N14P
Number of battery cells support : 3S
Motor winding turns : 14Turn Delta
Diameter :3-Strond 0.23mm
Per volt Speed : 920RPM/Volt
No-load current (10V): 0.4A
Motor outside diameter : 28mm
Maximum constant current : 10.3A
Maximum continuous power : 114W
Resistance : 180mΩ
Motor Weight : 51Grams ( with 600mm cable )
Dimensions : 27.9mm diameter * 40.7mm height
