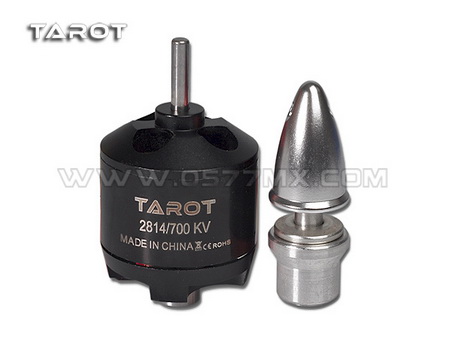

Feature:TAROT 2814/700KV efficient multi-axis brushless motor designed for multi-rotor aircraft designed for multi-axis aircraft in TL65B01/TL65B02/TL68B01/TL68B02/TL2778/TL2749D. Full CNC machined rotor high-magnetic material NdFeB refined, 12-pole stator with high strength epoxy pressure reinforce the protection of high-temperature, high-speed alloy steel motor shaft. Upper and lower motor cover using a high-speed precision bearings for large size, long life, high efficiency, low power consumption, low noise, and stability control superior characteristics.
Specifications:Motor peripheral diameter: 35.00mm
Stator diameter: 28.0 mm
Stator end thickness: 14.0 mm
Per volt speed: 700 RPM / Volt
Motor Weight: 102 G
Gear shaft mounting diameter: ¢ 4.0 mm
Motor shaft total length: 53.5 mm
No-load current: 0.8A
Installation diameter: ¢ 19MM, ¢ 25MM
Paddle Pitch: 6.3MM
