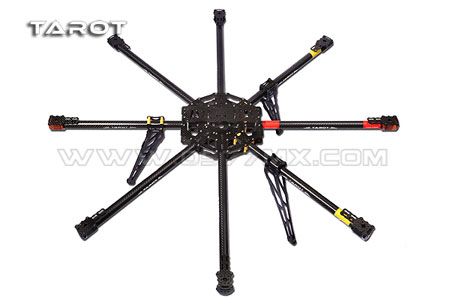

| Tarot IRON MAN1000 8 axis octocopter TL100B01 |
|
Using carbon content as 100% import Toray 3K plain carbon fiber woven CNC precision machining, high temperature and high pressure precast 2.0 thickness of pure carbon matte twill carbon fiber sheet quality beyond conventional commercially available products.
The comprehensive performance beyond the requirements of the national standards for a performance of high strength carbon fiber strip board motor seat 6061T6 aluminum alloy precision CNC machining, lightweight two-tone metal pieces of the overall exterior design has a strong perspective impact and for the body of the air to provide a good visual direction.
The overall use of materials and design standards higher than similar products, the full set of rack with tripod weighs only 1.6KG.
Design compressive load of 8 kg, the the professional aerial vehicle developed specifically to meet the 5DII, RED EPIC, C300, FS100, FS700 and large-scale video equipment.
Product parameters:
| Tube parameterst: |
25mm |
| wheelbase: |
1020mm |
| Rack diameter: |
1070mm |
| Total height: |
380cm |
| Center cover Specifications: |
250 × 240mm |
| The equilateral triangle Installation of the motor mounting hole distance: |
16mm/19mm/25mm/27mm |
Related optional accessories
Eight-hub TL100B07
The eight shaft of pure carbon fiber divert the main cover TL100B03
The eight shaft of pure carbon fiber battery plate, the center board TL100B04Eight-axis Φ25MM pure carbon fiber tripod TL100B05
The eight axis Φ25MM motor mount / orange TL100B06-1
Φ25MM 3K plain carbon tube (495MM) TL100B09
Φ25MM carbon fiber dual battery holder group TL80B05
Φ25MM carbon fiber single battery holder group TL80B04
30A Combo ESC ZYX15
30A quadruple ESC ZYX16
40A tubular multi-axis brushless ESC ZYX17
30A round multi-axis brushless ESC ZYX18
4114/320KV multiaxial brushless motors TL100B08 of M3 head nut TL100A02
1555 efficient carbon fiber multiaxial pros and cons paddle TL28121555 (the tip of the wing) efficient carbon fiber multiaxial pros and cons paddle TL2813
Recommended configuration:
4114/320KV multiaxial brushless motors
TL100B08 of 1555 efficient carbon fiber multiaxial pros and cons paddle TL2812
30A Combo Brushless ESC ZYX15
30A quadruple Brushless ESC ZYX16
40A tubular multi-axis brushless ESC ZYX17
6S power battery 1000-015000MAH
Ironman kit including:
- Pure carbon fiber on the main cover (250 × 240 × 2.0mm) x 1
- Pure carbon fiber under the body of the cover plate (250 × 240 × 2.0mm) × 1
- M3 the PTZ nut × 48
- Pure carbon fiber battery holder (220 × 63 × 2.0MM) × 1
- Pure carbon fiber adapter center plate (73 × 73 × 2.0MM) × 1
- The M3 × 35MM (H7) hexagonal aluminum column × 6
- The M3 × 12MM (H7) hexagonal aluminum column × 4
- Fixed piece of pure carbon fiber ESC (92.0 × 41.0 × 2.0MM) × 8
- Pure carbon fiber motor adapter plate (35 × 38.6 × 2.0MM) × 16
- Φ25MM 3K plain carbon tube (495MM)
- The metal Φ25MM motor mount × 8
- Hexagon collar screw M3 × 24 Cup head × 24
- Pure carbon fiber tripod left side plate (345 × 150 × 2.0MM) × 3
- Pure carbon fiber tripod right plate (250 × 240 × 2.0mm) x 3
- Φ25MM PTZ tube clip × 60 (two-color)
- Hexagon collar screw M3 × 35 Cup head × 60
- Shock RABINM3 × 10MM aluminum column × 3
- M3 * 5MM round head screws × 18
- M2 * 18Mm Cup head Hexagon collar screw x 3
- M2 slip nut × 1
- Two-color point stickers × 4
- Large water stickers × 8
- Battery Magic glued × 1
- Manual
| |
