Gopro Brushless Gimbal with Gyro TL68A00 Tarot 2 axis Camera Mou

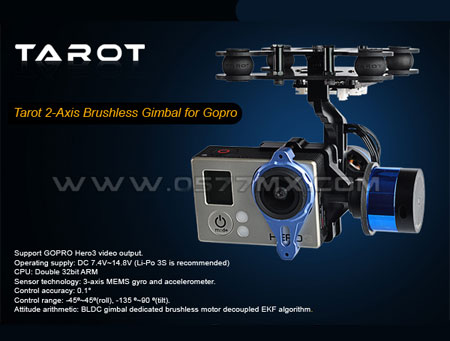

Tarot T-2D gimbal is designed for the Gopro Hero3, which is widely usedinfilm,television productions, advertising aerial photography, etc. Using 6061T6 aluminum alloy full CNC precision machining and brushless motor driving,its overall framework is designed with the idea of compact, easy installation, high precision, lightweight, high stability and many other characteristics. Evenif the aircraft is in high-speed flight, it can still stabilize and control the Goprocamera precisely with the highest stability, so pictures or videos output can reach the best quality.

Software for Windows & Win 7/ XP can be downloaded free at http://www.kingwjg.com/ZYX/Gopro.rar

• HSupport sensitivity parameter adjustment and software 3D pose show

• The support rocker rate mode and position mode

• Support Receiver: conventional receiver, S-BUS receiver, DSM2/DSMJ/DSMX receiver

• Support for remote devices: PPM/PCM/2.4G

• The working voltage: DC 7.4V ~ 14.8V (Recommended 12V, three lithium battery)

• Working current: 200mA-500mA (power supply voltage and the motor related)

• The working environment temperature: -15⊥ ~ 65⊥

• The processor: Dual 32-bit high-speed ARM core processor

• The sensor: Three rotor MEMS gyroscope rotor MEMS accelerometers and the three

• The maximum angular rate: 2000～ / sec

• The maximum acceleration: 16g

• The control frequency: 2000Hz

• The motor drive frequency: 20KHz (no noise smoothing driven)

• The control accuracy: 0.1～

• The control angle range: -45～ ~ 45～ (roll), -135～ ~ 90～ (tilt)

• Pose solver algorithms: PTZ dedicated brushless motor decoupled EKF algorithm

• For shooting equipment: GOPRO Hero

Weight :11g
Dimensions : 34 x 25 x 13.7mm
