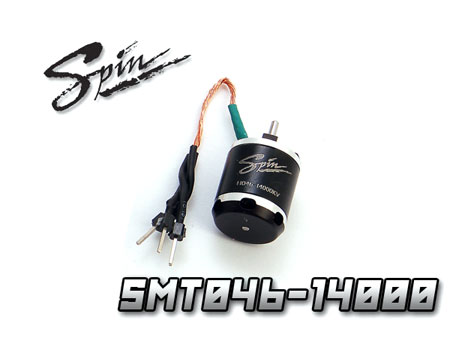

This outrunner motor is mainly designed for micro size helicopters, such as Walkera V120D01, D02, D03, D05 4G6, 4G3, 4#6, etc. with 14t to 16t pinion.
For maximum life, please ensure that the bearings are maintained properly; put a small drop of bearing oil on each bearing every 5 flights. And please make sure that a sufficient gap is left between the pinion and main gear during motor installation to avoid binding and causing over load to the motor.
| Motor Kv: | 14000 RPM / Volt (KV) |
| No-Load Current (Io): | 1.1 Amps @ 3.5volt |
| Max Continuous Current: | 8 Amps |
| Weight: | 6.9 grams |
| Diameter: | 13.6 mm |
| Length: | 18.2 |
| Shaft Diameter: | 1.5 mm |
| Shaft Length:: | 6 mm |
| Distance Between Holes | 8.50 / 8.0 mm, M1.4 screw |
| Max Lipo Cell: | 1 Cell |
