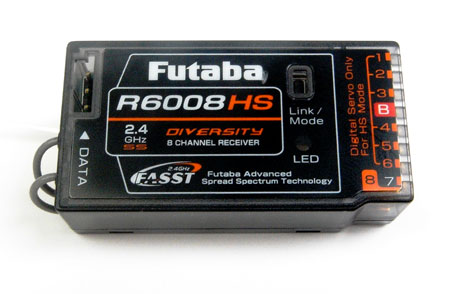

R6008HS is a new version 2.4Ghz Receiver from Futaba. It could be operated in Normal Mode or High Speed mode.
The Normal Mode accepts any type of servos or the peripherals as the frame rate of the output is 14ms.
The High Speed Mode accept the digital servos for outputs from 1ch to 6 ch, including BLS Series, and most peripheral equipments such as the gyro or brushless ESCs.
The frame rate of the outputs is 7ms.es.
| Band: | 2.4GHz |
| Channel: | 8 |
Dimensions: | 24.9 x 47.3 x 14.3 mm |
| Weight: | 13.5g |
| Operating Voltage: | 4.8 - 6.0 V |
| Antenna Length : | 14cm |
Range: | 6000 +Feet |
This receiver can ONLY USE with Futaba Transmitter with 8 channels or more, it will not work with the 2.4GHz 6EXAS or the 7C 2.4GHz transmitters
