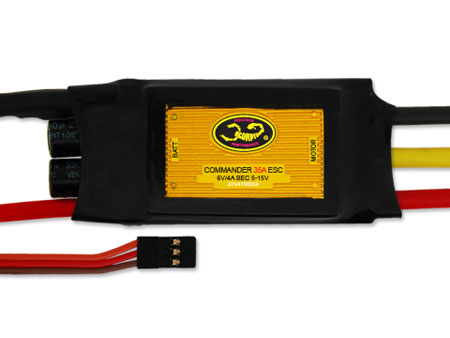

Scorpion Commander Series Brushless Speed Controllers represent one of the best values in the speed controller market today.
From the beautiful gold anodized heatsinks, to the unique metal containers that the ESC's are shipped in, everything about Scorpion Speed Controllers shows the company's commitment to quality.
These ESC's are manufactured from top quality components, in a state of the art manufacturing facility, and are designed to provide years of trouble free operation.
The V2 models of Scorpion Commander Speed Controllers contain new Helicopter programming that includes Soft-Start and Governor modes.
The Soft-Start features 3 different user selectable spool-up times of 10, 15 and 20 seconds. The Governor mode allows for settings of 50, 60, 70, 80, or 90 percent throttle. Another update is a revised LVC feature that is no longer cell dependent. With the new LVC system, any value can be selected from 5.0 to 13.8 volts in 0.2 volt increments.
This ESC was specifically developed for use in 450 and 480 class electric helicopters. It is constructed by stacking two 30 amp ESC's together to get a compact size that fits well on smaller helicopters. This ESC also features a 6.0 volt BEC to provide extra power to your servos for more speed and more torque.
Also included with the V2 model ESC's is the exclusive Scorpion Wireless Programming System. This system includes a postage stamp size Infrared receiver module and a credit card size wireless remote transmitter. With this programming system, you do not need to unplug any wires or need to drag out a computer or cable to change the settings on your speed controller. The Scorpion Wireless Programming System makes changing your ESC parameters as easy as changing the channel on your TV. The adjustable parameters on every Scorpion ESC include: Battery Type, Cell Count, Low Voltage Cut-off Level, Power Cut-off Type, Current Overload Protection, Braking Level, Acceleration Time Delay, Helicopter or Airplane Mode, Soft Start Mode, Soft Start Duration, Governor Mode, PWM Frequency Selection, Timing Advance and Motor Rotation.
 |  |
Weight (Without Connectors): | 3.17 gm (1.12 oz)
|
| Max Continuous Current: | 35 Amps
|
Operating Voltage Range: | 6 to 15 Volts |
Max BEC Output: | 3 Amps @ 5.0 V |
On Resistance: | 2.56 mOhms |
Size: | 67 x 29 x 9 mm (2.64 x 1.02 x 0.35 in) |
- 15A 35V Speed controller
- I-Receiver
- Sticker - Scorpion Logo x 2
- ESC programming Card
- Aluminum Box
- English Instruction Manuel
|  |
